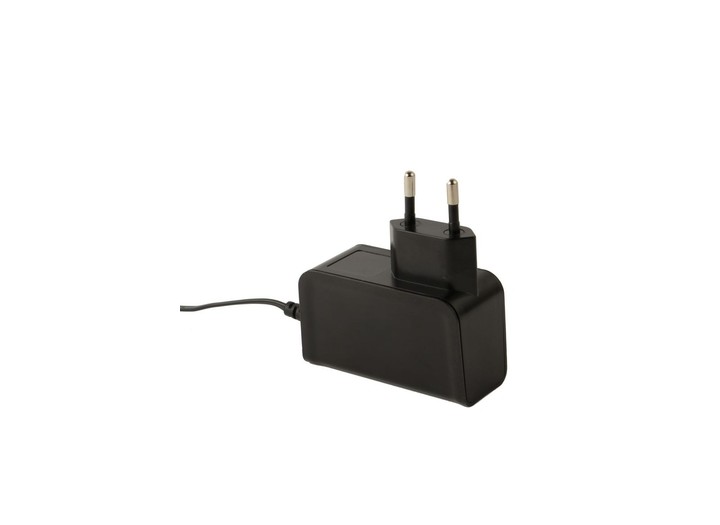

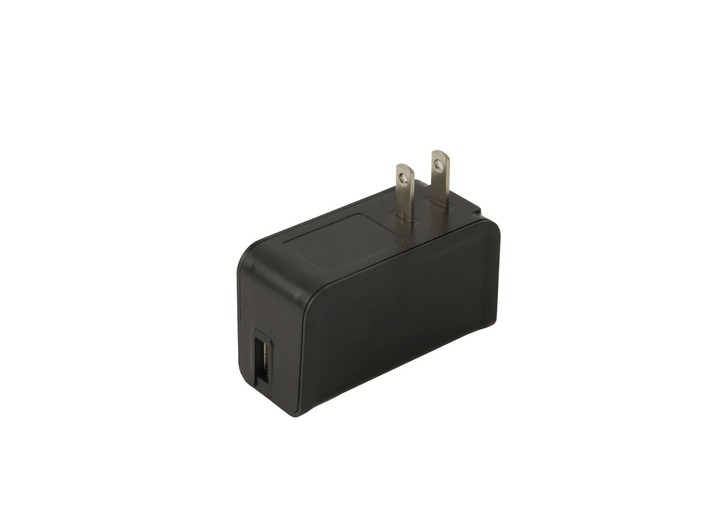

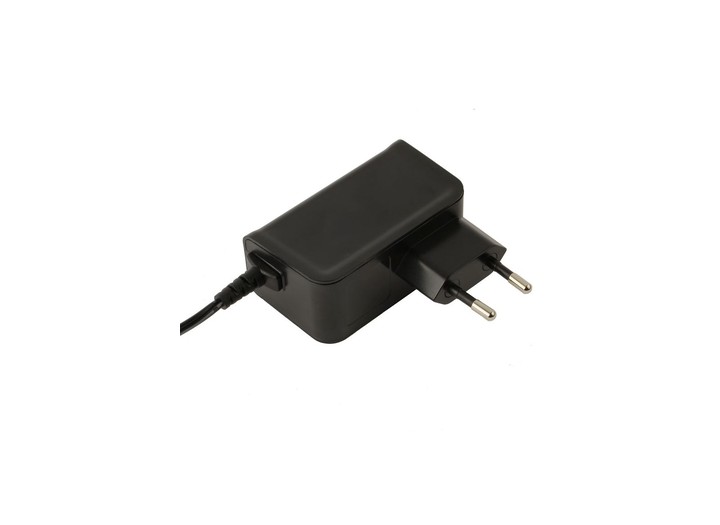

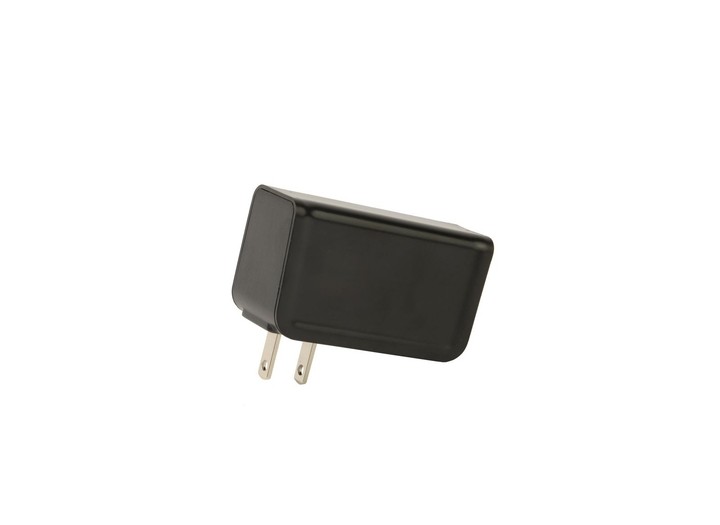

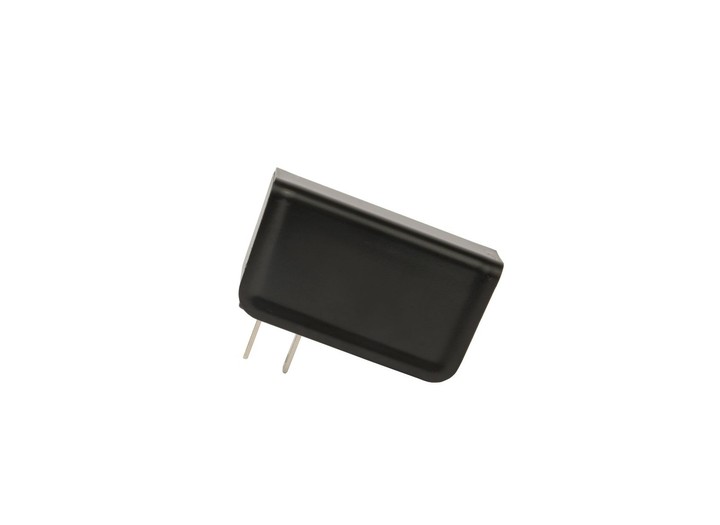

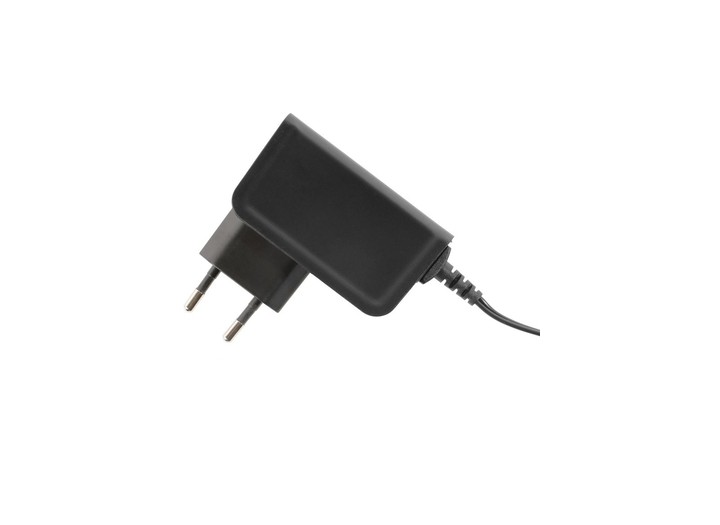

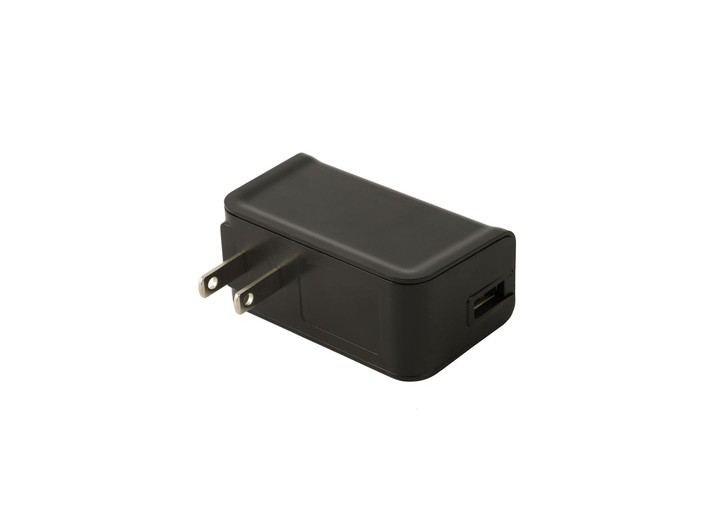

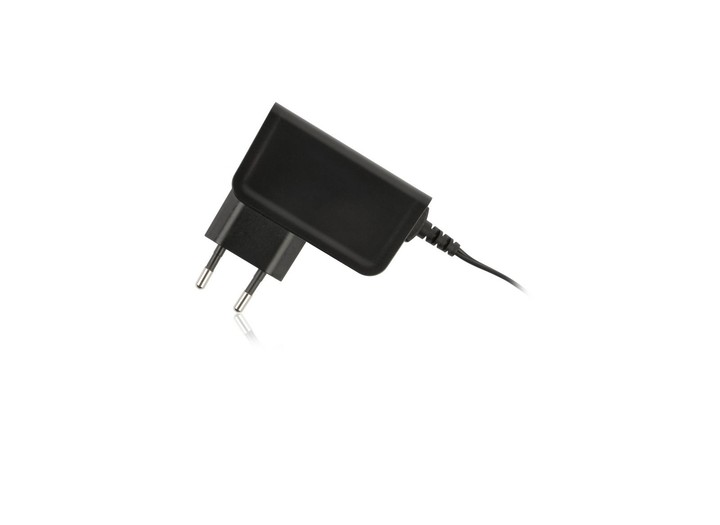

Detail view
Product Highlights
- Universal Input 90 - 264VAC
- CEC & ErP & DoE Level VI compliant
- Meet EN55022 Class B
- Meet CISPR / FCC Class B
- Over Voltage (Input & Output) Protection, Over current protection
- Short Circuit Protection
Safety standards
- Information technology equipment
- IEC/EN 60950-1,UL 60950-1,CSA C22.2
No. 60950-1-03,GB4943 - IEC/EN 60065,UL 60065, GB4943
Certificates and approvals
- CB, CE, GS, UL, cUL, C-Tick, CCC, PSE, KC, FCC
EMI Emission
- Radiation test & conduction test：
EN 55022/FCC part 15 - Harmonic test：EN 61000-3-2
- Flicker test：EN 61000-3-3
EMS immunity
- ESD test: EN 61000-4-2
- RS test: EN 61000-4-3
- EFT test: EN 61000-4-4
- Surge test: EN 61000-4-5
- CS test: EN 61000-4-6
- DIP test: EN 61000-4-11
Typical Model List
| DC OUTPUT VOLTAGE | DC OUTPUT CURRENT | OUTPUT VOLTAGE PRECISION | RIPPLE & NOISE | REGULATION | MAX OUTPUT POWER | |
|---|---|---|---|---|---|---|
| LINE | LOAD | |||||
| 4.5-5.0V | 10-2000mA | 5% | 100mV | ±1% | ±5% | 10W |
| 5.1-6.0V | 10-1500mA | 5% | 150mV | ±1% | ±5% | 9W |
| 9.0-12.0V | 10-1000mA | 5% | 150mV | ±1% | ±5% | 12W |
Mechanicals
